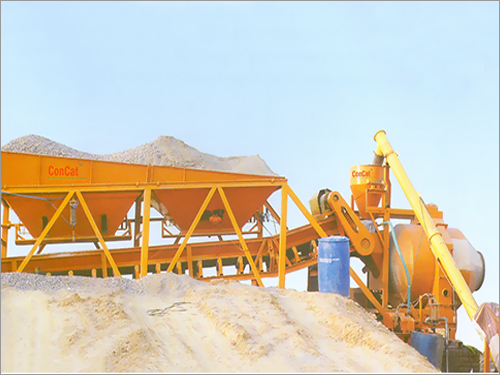

Concat RDM-Series Concrete Batching & Mixing Plant

Concat RDM-Series Concrete Batching & Mixing Plant
Concat RDM-Series Concrete Batching & Mixing Plant
Product Code : 01
Product Description

Concat RDM-Series Concrete Batching & Mixing Plant

Concat-RDM Series is dedicated to Concrete Batching and Mixing Plant with reversible drum.

Specification:

MODEL

RDM - 20

RDM - 30

Mixer Unit

Drum Mixer

Mixer Unit

Geometrical Volume

1.5 M3

1.75 M3

RMC Output/Batch

0.5 M3

0.75 M3

Percentage of Filling

35%

35%

Batches/Hour

40

40

Discharge Height From GL

Discharge In Pump

Discharge In Pump

Capacity (8 Hours)

160 M3

240 M3

Cement Batching

By Weight

By Weight

Aggregate Batching

By Weight

By Weight

  Water Batching

By Weight

By Weight

Ad-Mix Batching

By Weight

By Weight

Number of Compartment

03 Nos.

03 Nos. - 3/4

Power Consumption

Mixer Motor

10 HP

15 HP

Belt Conveyor Motor

10 HP

15 HP

Cement Screw Feeder

10 HP

10 HP

Water Pump

3 HP

3 HP

Compressor Motor

3 HP

3 HP

Vibrator Motor

0.5 HP

0.5 HP

Chemical Motor

1 HP

1 HP

Net Consumption

35 HP

42.5 HP

Power Supply

415 X 50 Hz

415 X 50 Hz

Recommended D.G Set

45 KVA

62 KVA

Note: Accuracy of IS 4925 the accuracy of Design Mix # (+-) 1 % Water & Cement (+-) 2% for the aggregates.
